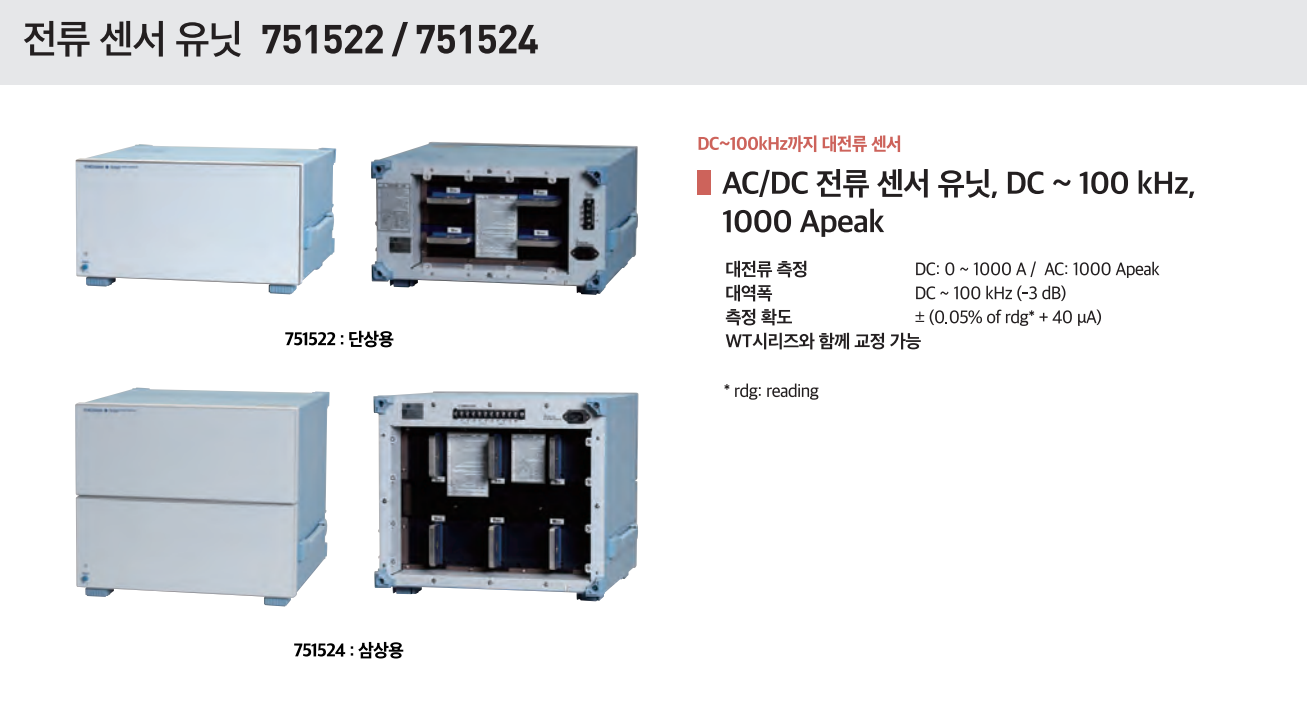

YOKOGAWA 751522, 751524 전류 센서 유닛
가격문의(상세정보 참조)
- Large current measurement: 0 to 1000 A (DC)/1000 Apeak (AC)
- Wide measurement frequency range: DC to 100 kHz (-3 dB)
- High-precision fundamental accuracy: ±(0.05% of rdg* + 40 µA)
- Superior noise withstanding ability and CMRR characteristic due to optimized casing design
- Calibration enabled in combination with WT Series
클릭 하시면 이동합니다.
751522
751524
Current sensor unit accessories for digital power meters and power analyzers.
DC to 100 kHz/1000 a peak guaranteed calibration with power analyzers.
Current sensor unit accessories for digital power meters and power analyzers DC to 100 kHz/1000 a peak guaranteed calibration with power analyzers.

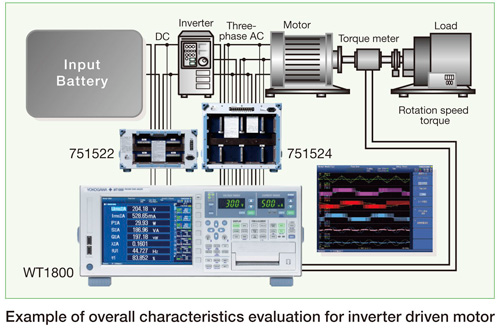

Current sensor units can be used for large-current power measurements, which are difficult to take directly in excess of a power analyzers rating. With the ability to measure a wide range of frequencies from DC to 100 kHz with high precision, the current sensor units can be used in a variety of power measurement applications, such as HEV, EV inverter drive motors and fuel cells. In addition, they can be used in combination with Yokogawa's WT Series of Power analyzers and PX Power scope. This makes them well-suited to power measurement applications requiring an especially high level of precision. Use model 751522 for single-phase measurements and model 751524 for three-phase measurements.
- Large current measurement: 0 to 1000 A (DC)/1000 Apeak (AC)
- Wide measurement frequency range: DC to 100 kHz (-3 dB)
- High-precision fundamental accuracy: ±(0.05% of rdg* + 40 µA)
- Superior noise withstanding ability and CMRR characteristic due to optimized casing design
- Calibration enabled in combination with WT Series
*rdg stands for reading
