OPTEX FA BGS-ZL&BGS-Z SERIES 표준 사이즈 센서
OPTEX FA BGS-ZL&BGS-Z SERIES Standard-sized Sensors
Laser and high-power narrow beam LED sensors
- Highly accurate height difference detection due to low hysteresis
- 2 sensing ranges with laser models and 3 sensing ranges with LED models available
- Fast response of 250μs on laser models and 500μs with LED models
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
BGS-ZL & BGS-Z SERIES
표준 사이즈 센서
BGS-ZL & BGS-Z SERIES Standard-sized Sensors

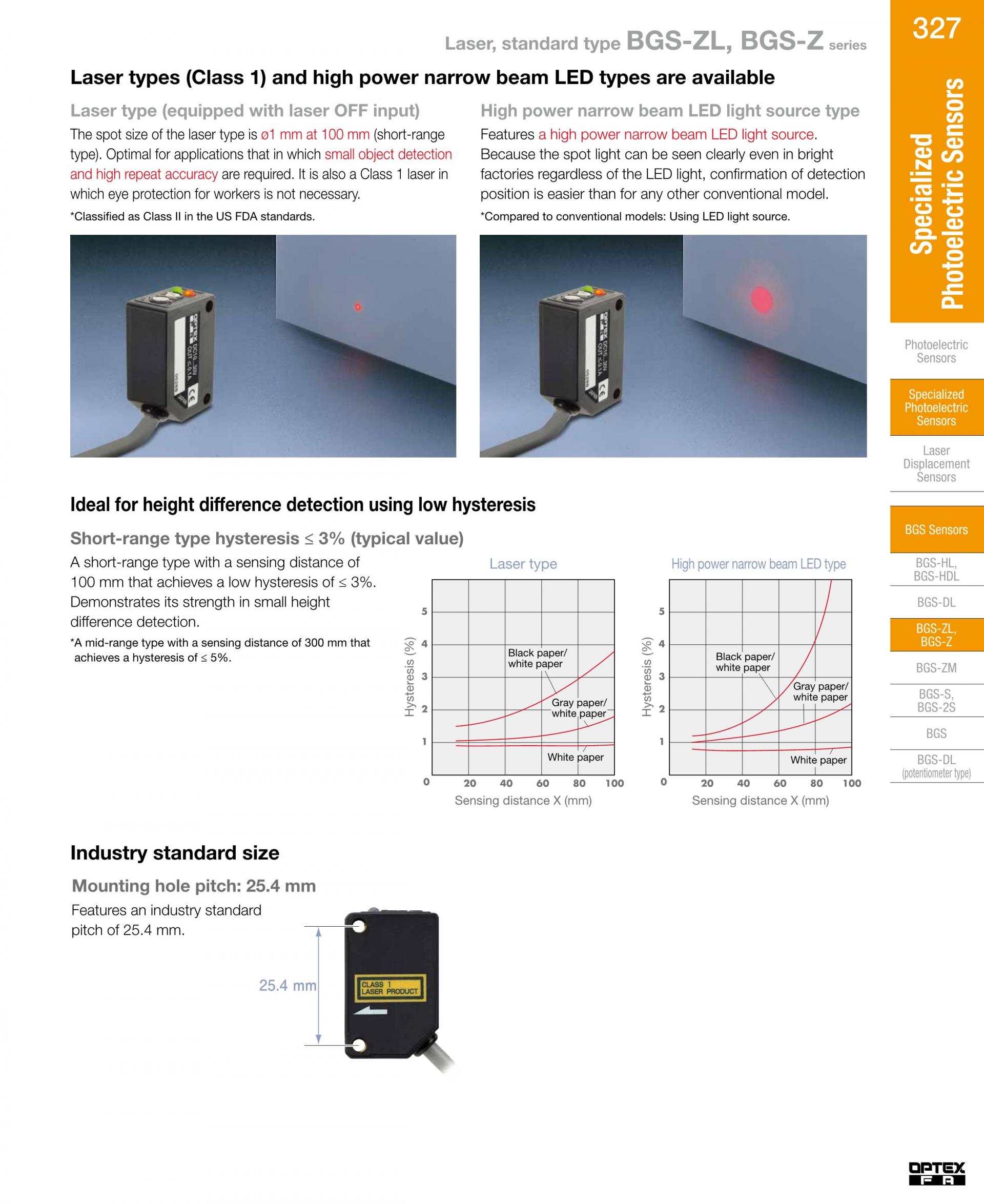

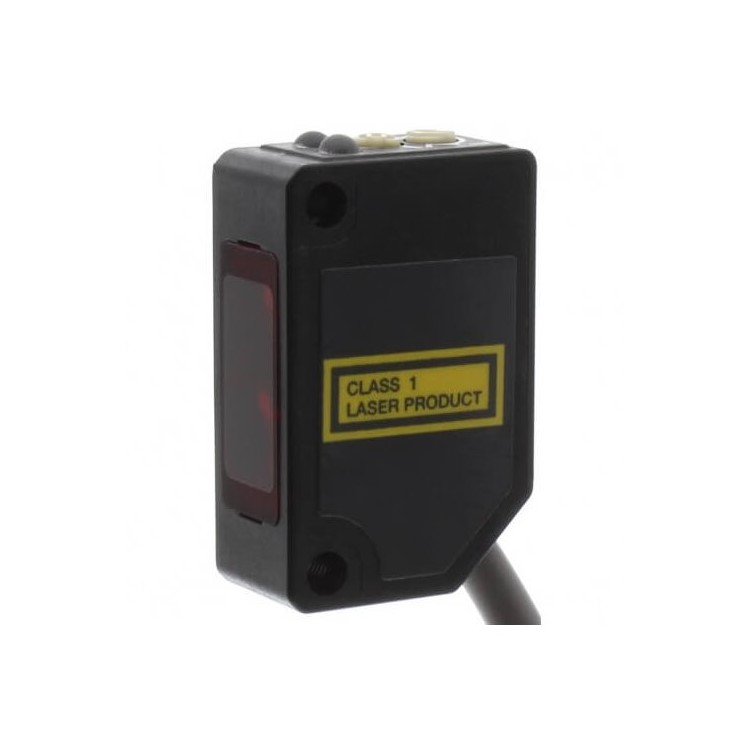

- Laser types (Class 1) and high power narrow beam LED types are available

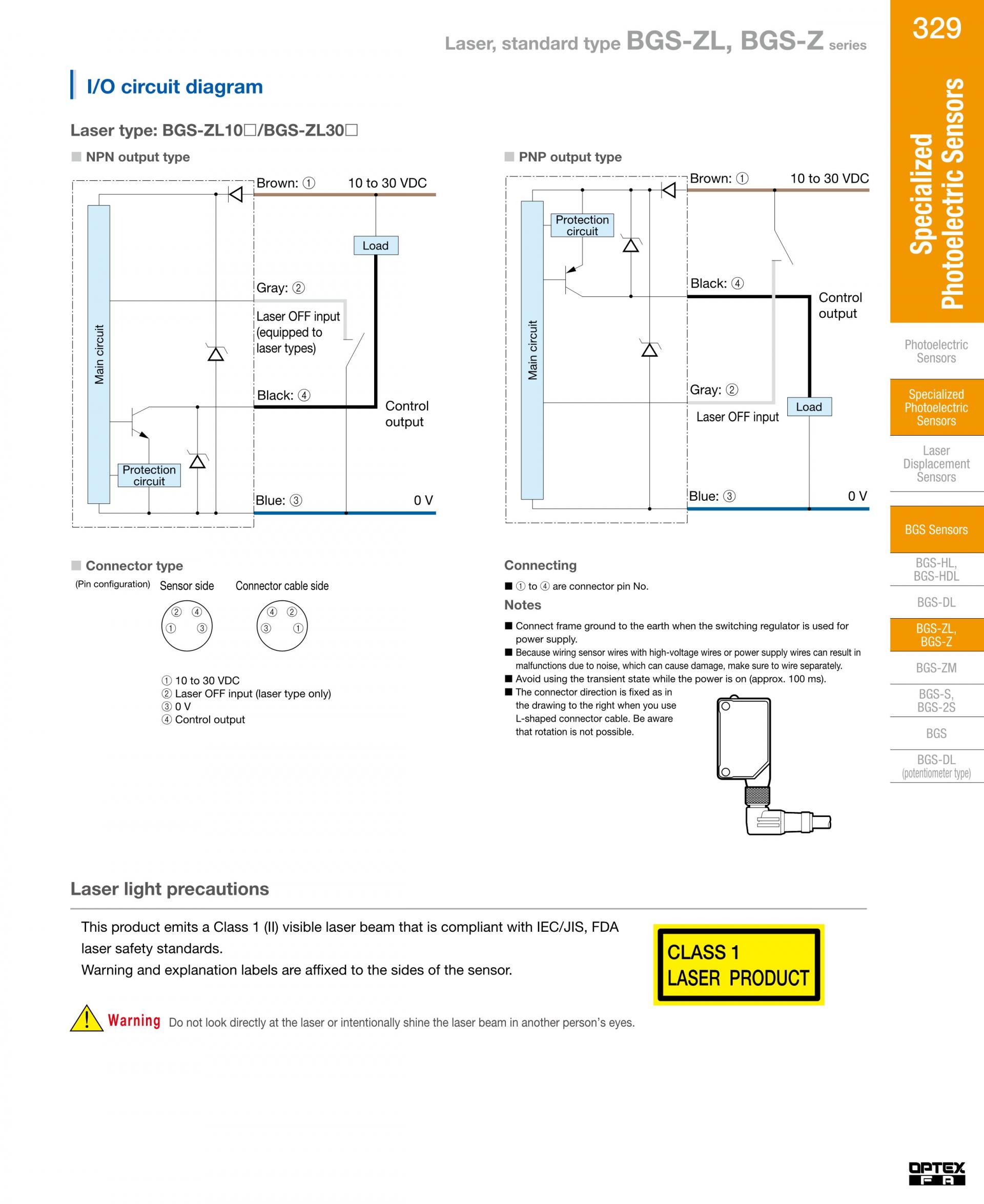

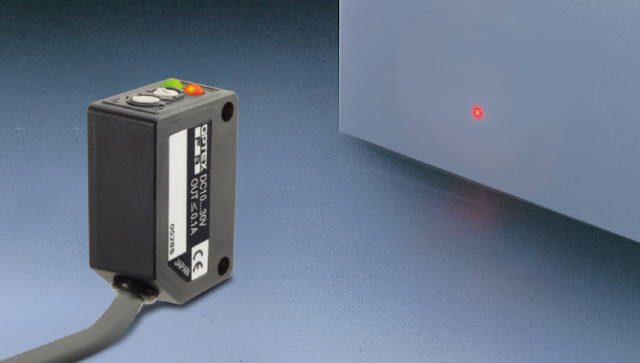

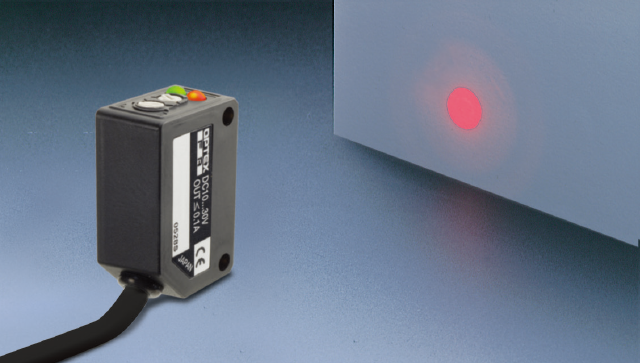

Laser type (equipped with laser OFF input) The spot size of the laser type is ø1 mm at 100 mm (short-range type). Optimal for applications that in which small object detection and high repeat accuracy are required. It is also a Class 1 laser in which eye protection for workers is not necessary. *Classified as Class II in the US FDA standards.  | High power narrow beam LED light source type Features a high power narrow beam LED light source. Because the spot light can be seen clearly even in bright factories regardless of the LED light, confirmation of detection position is easier than for any other conventional model. *Compared to conventional models: Using LED light source.  |

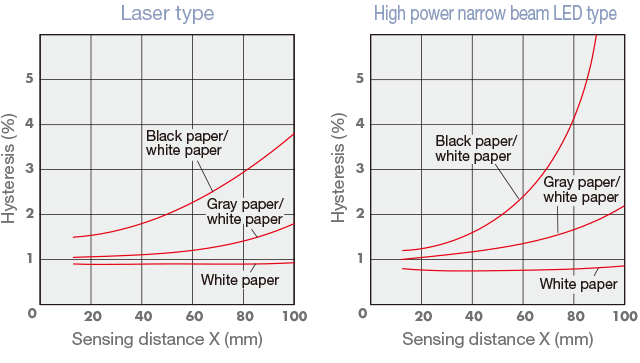

- Ideal for height difference detection using low hysteresis

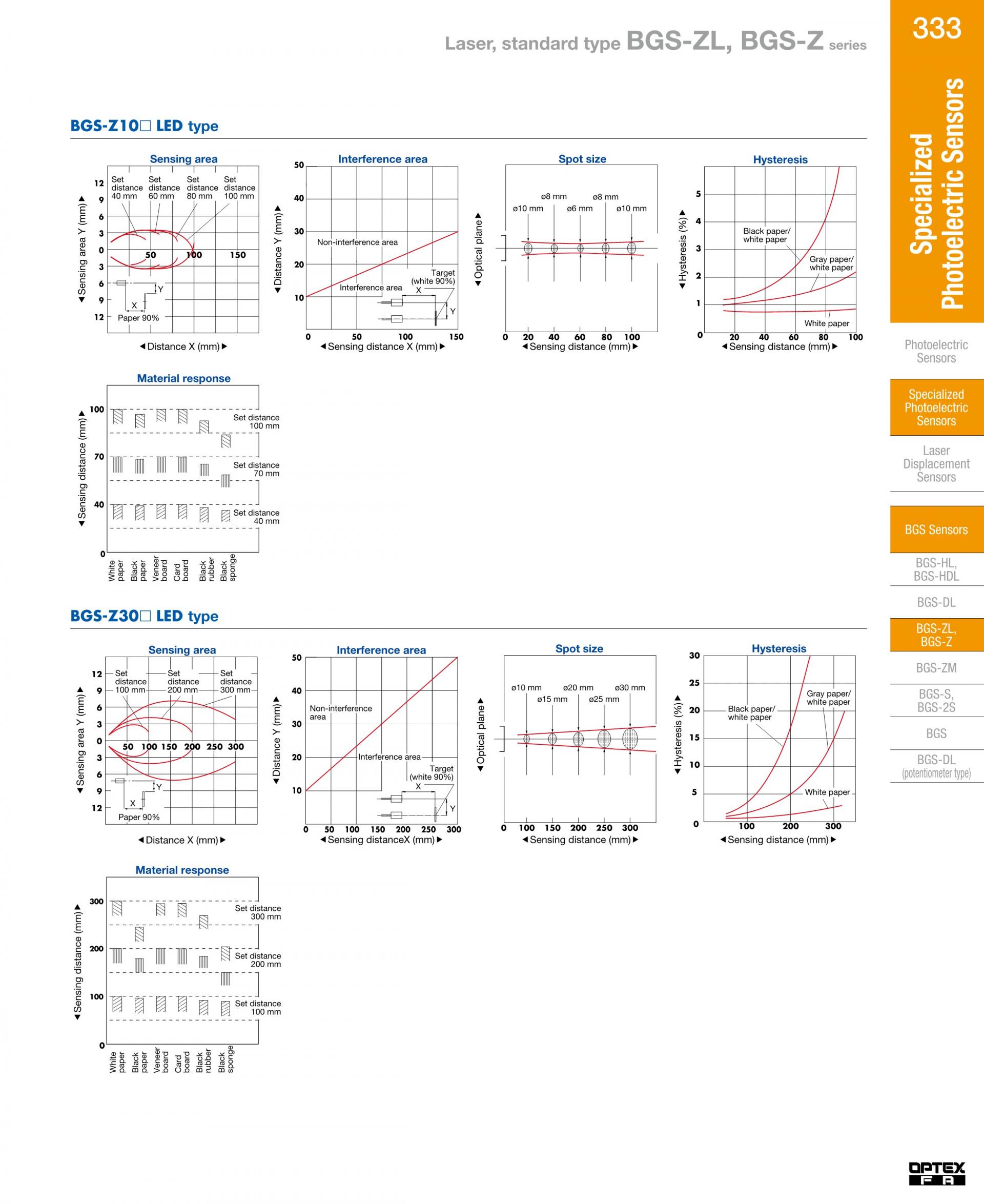

Short-range type hysteresis ≤ 3% (typical value)
A short-range type with a sensing distance of 100 mm that achieves a low hysteresis of ≤ 3%. Demonstrates its strength in small height difference detection.
* A mid-range type with a sensing distance of 300 mm that achieves a hysteresis of ≤ 5%.

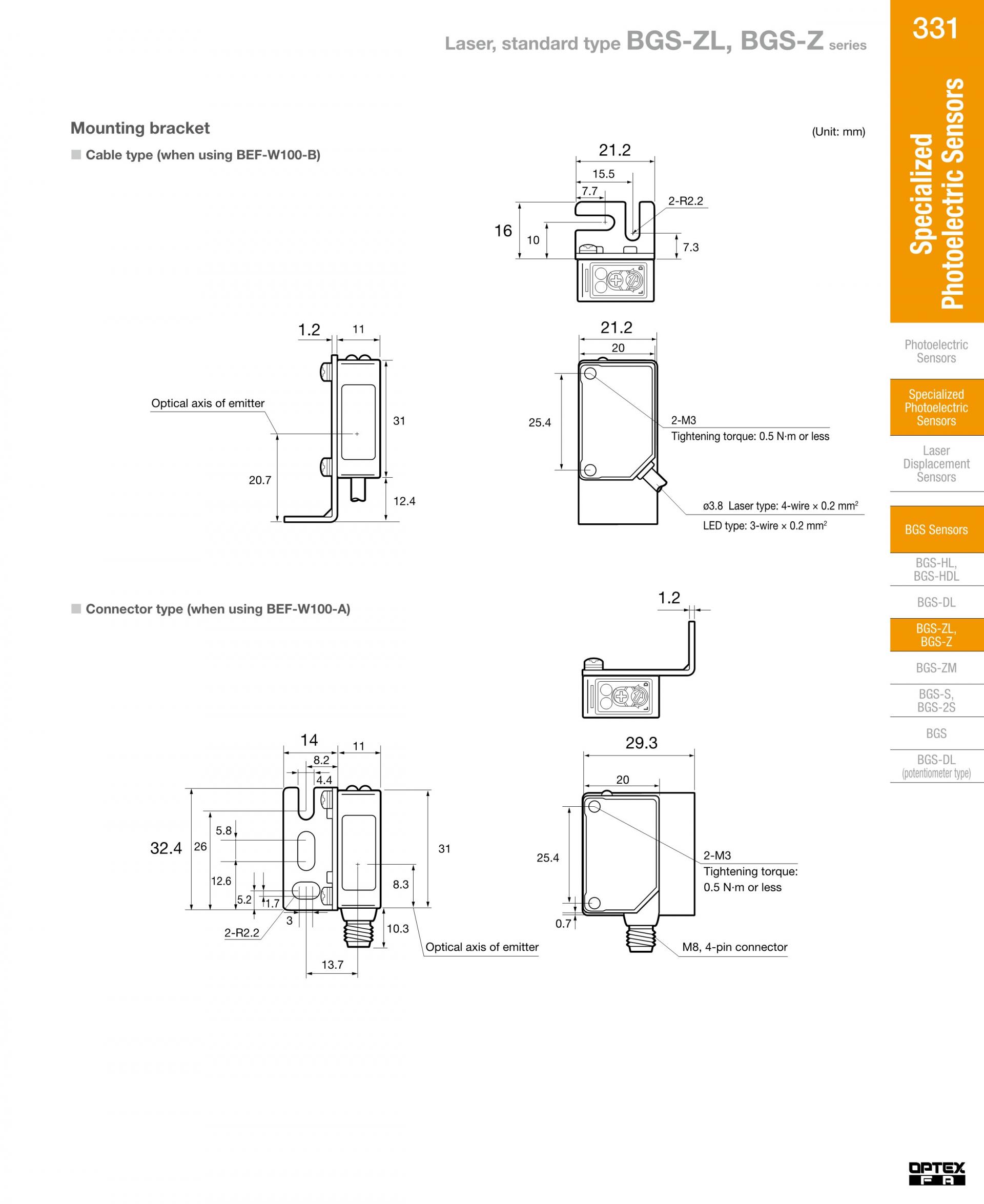

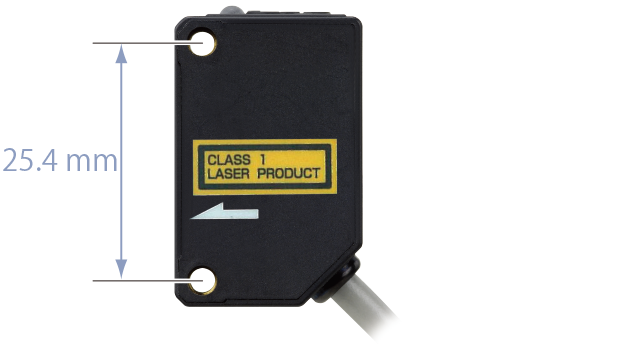

Mounting hole pitch: 25.4 mm Features an industry standard pitch of 25.4 mm.  |

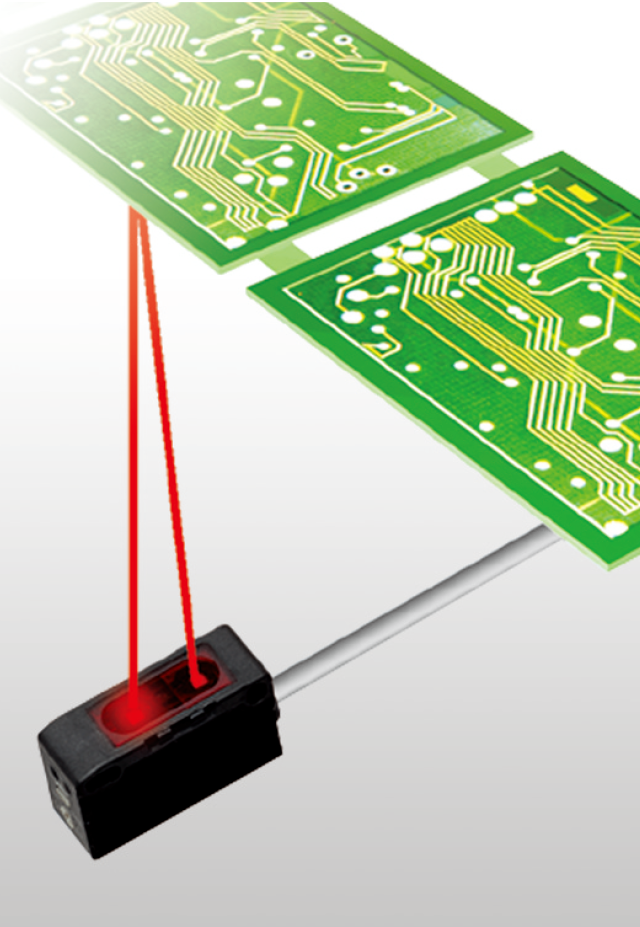

Substrate detection type (BGS-Z15N) Features of this type include stable detection even if the substrate type is changed, as well as high repeat accuracy, even among models in the series.  |
