LECROY PXP-100B 테스트 플랫폼

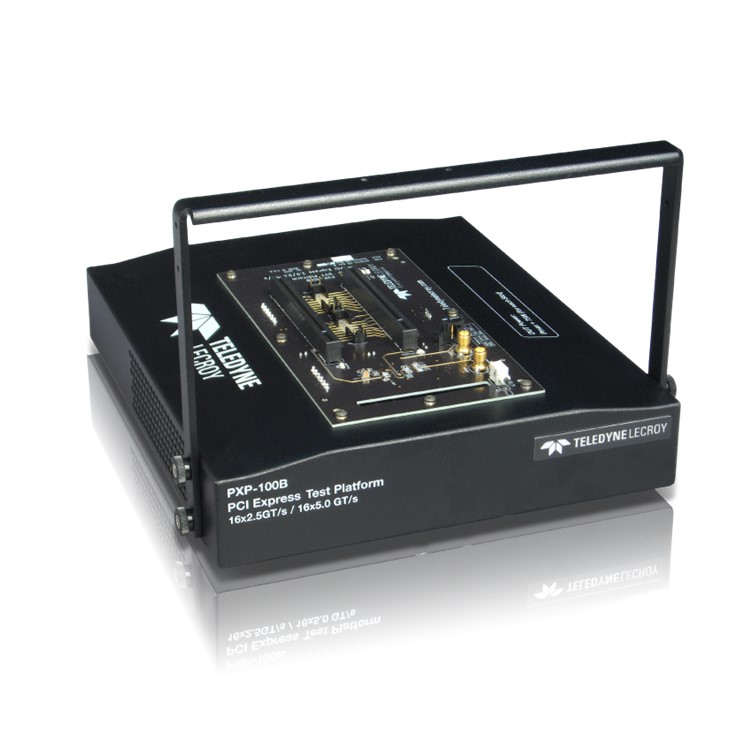

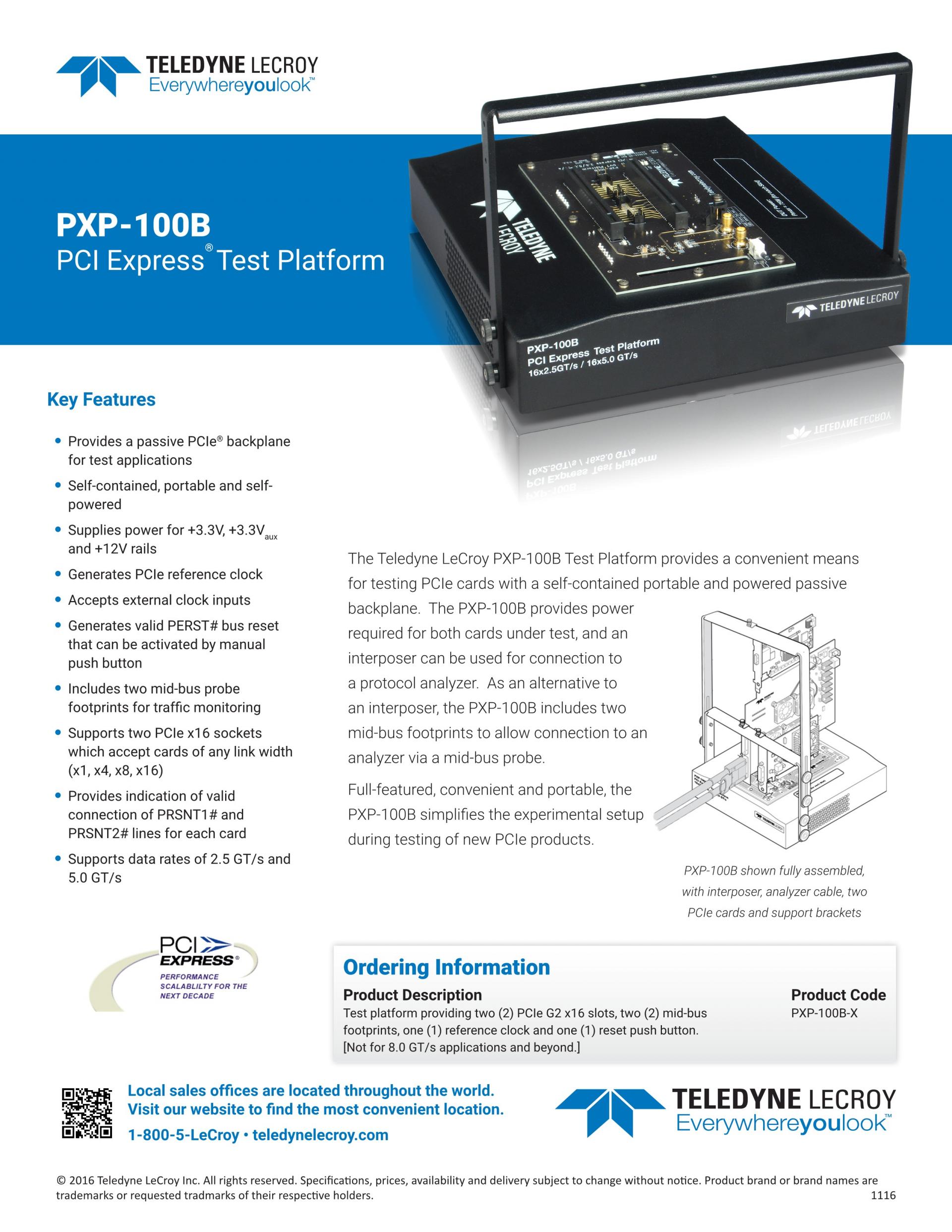

LECROY PXP-100B PCI Express Test Platform

• Provides a passive PCIe  backplane for test applications
• Self-contained, portable and self- powered
• Supplies power for +3.3V, +3.3Vaux and +12V rails
• Generates PCIe reference clock
• Accepts external clock inputs
• Generates valid PERST# bus reset that can be activated by manual push button
• Includes two mid-bus probe footprints for traffic monitoring
• Supports two PCIe x16 sockets which accept cards of any link width (x1, x4, x8, x16)
• Provides indication of valid connection of PRSNT1# and PRSNT2# lines for each card
• Supports data rates of 2.5 GT/s and 5.0 GT/s
