DITECT HAS-U1 고속카메라
가격문의(상세정보 참조)
DITECT HAS-U1 고속카메라
DITECT HAS-U1 USB 3.0 MEGAPIXEL DIGITAL HIGH SPEED CAMERA
- Capable of 200fps at 1.3M pixel
- Maximum shooting speed at 4,000fps by limiting the pixel area
- Perfect for multiple high speed camera imaging with embedded memory
- 1280x1024 pixel
- USB3.0
- Start / End / Variable trigger mode
클릭 하시면 이동합니다.
디텍트 ・ DITECT
HAS-U1
고속카메라
HAS-U1 USB 3.0 MEGAPIXEL DIGITAL HIGH SPEED CAMERA

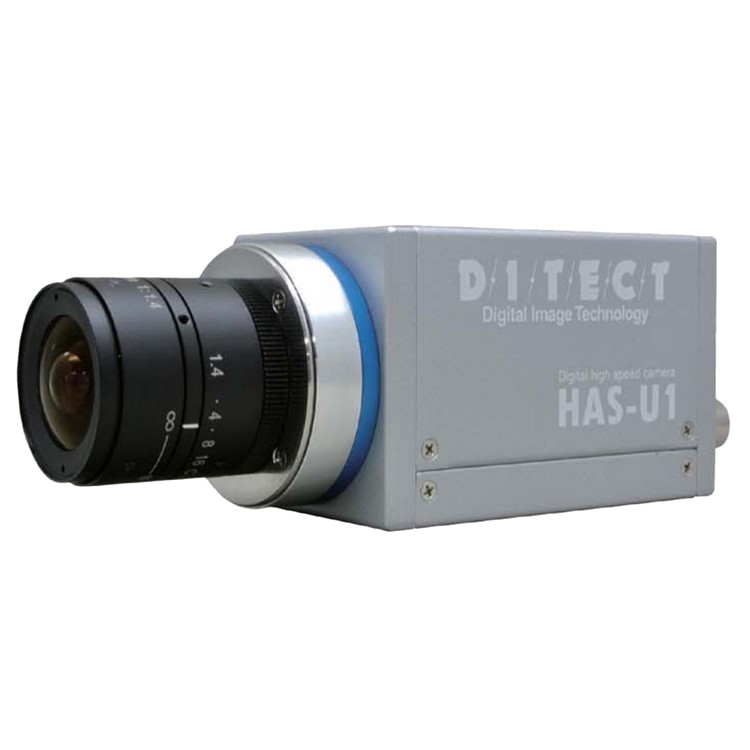

HAS-U1 is a high speed camera with ½-inch CMOS sensor and 1.3M 1280×1024 effective pixels that can shoot 200fps at full resolution, 800fps at VGA, and up to 4,000fps by limiting the pixel area.
Perfect for multiple high speed camera imaging with embedded memory in one compact solution.
Perfect for all kinds of research / production engineering in behavior, fluid, sports science, biomechanical, robotics, machine vision,
crash test, droplet, microscopy, trouble shooting, and more.
Product
- Camera unit
- USB3.0 cable
- Control software
 |  |

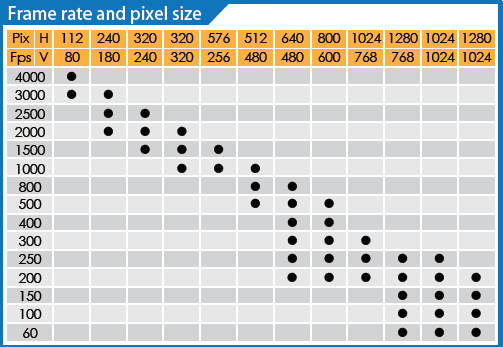

Frame rate and pixel size

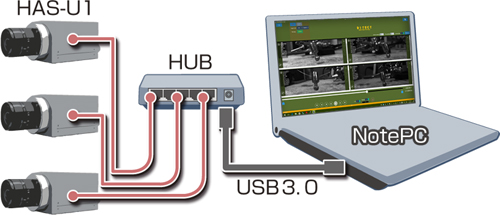

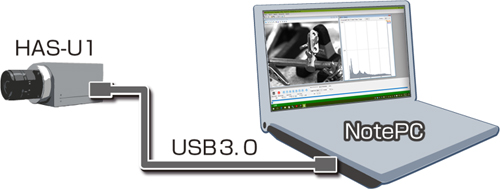

Connection diagram
Embedded memory mode
Multiple cameras with one PC
DMA transfer mode
Large volume of memory available using 64bit OS
Details
- Well balanced between high resolution and high frame rates
- It can use both embedded 2GB memory mode and direct memory access mode with USB3.0 as the situation demands
- Fully synchronized multiple high speed cameras with just one laptop PC
- Large volume of memory by using 64bit OS
- The low power consumption design, made for USB3.0 bus power, simplifies your cabling layout
- Internal / External sync
- 10bit A/D
- Data transmission rate at 250MB/sec
- Unit weight approx. 210g, unit size (W×H×D) 44×44×81.5mm

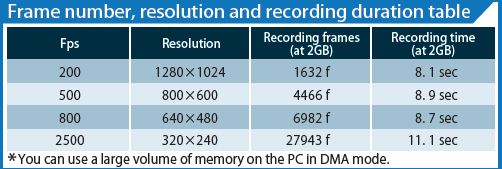

Frame number, resolution and recording duration table

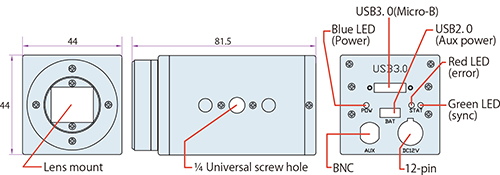

Dimensions
