DITECT HAS-EF 고속카메라

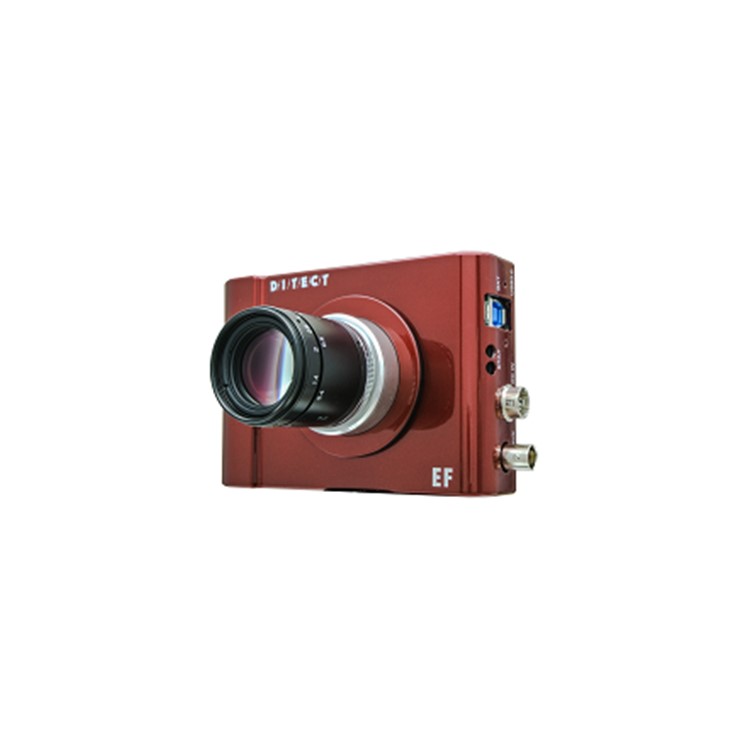

DITECT HAS-EF USB 3.0 high resolution digital high speed camera
- Capable of 250fps at 5.2M pixel
- Maximum shooting speed at 14,000fps by limiting the pixel area
- Perfect for multiple high speed camera imaging with 6GB embedded memory
- 2560x2048 pixel
- USB3.0 (Type B)
- Start / End / Variable / Motion trigger
클릭 하시면 이동합니다.
디텍트 ・ DITECT
HAS-EF
고속카메라
HAS-EF USB 3.0 high resolution digital high speed camera
HAS-EF is a high speed camera with 1-inch CMOS sensor and 2560x2048 effective pixels that can shoot 250 fps at full resolution, 500 fps at full HD, 1,400 fps at VGA, and up to 14,000 fps by limiting the pixel area.
Perfect for multiple high speed camera imaging with 6GB embedded memory in one compact solution.
Well suited for all kinds of research / production engineering in behavior, fluid, sports science, biomechanical, robotics, machine vision, crash test, droplet, microscopy, trouble shooting, and more.

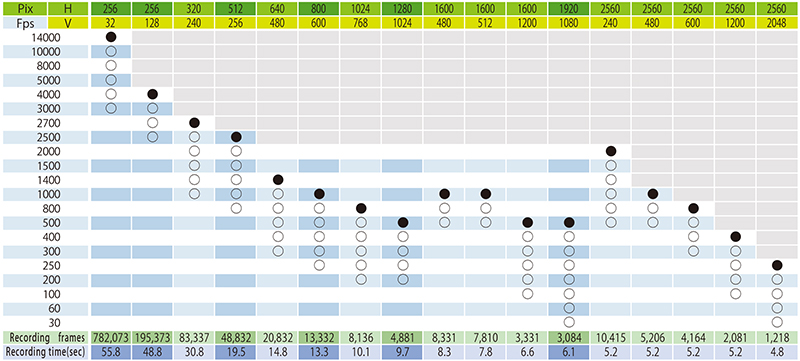

Frame rate and pixel size
Connection diagram

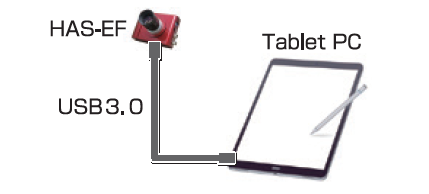

With tablet PC
| With multiple high speed cameras |
Details
- Battery operation is possible
- 6GB embedded memory allows you to record 3,000 frames at full HD and 20,000 frames at VGA
- Well balanced between high resolution and high frame rates
- Fully synchronized multiple high speed cameras with just one laptop PC
- Internal / External sync
- 12bit A / D

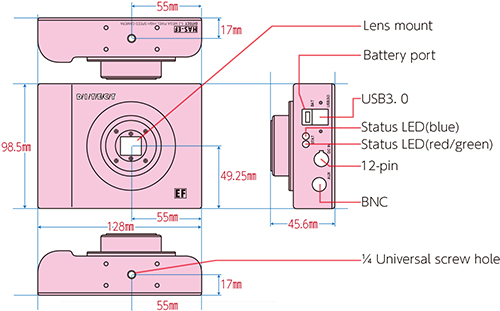

Dimensions
HAS-EF HAS-EF DITECT DITECT HAS-EF HAS-EF 디텍트 디텍트 HAS-EF HAS EF HAS EF DITECT DITECT HAS EF HAS EF 디텍트 디텍트 HAS EF
