DITECT HAS-D73 고속카메라
가격문의(상세정보 참조)
DITECT HAS-D73 고속카메라

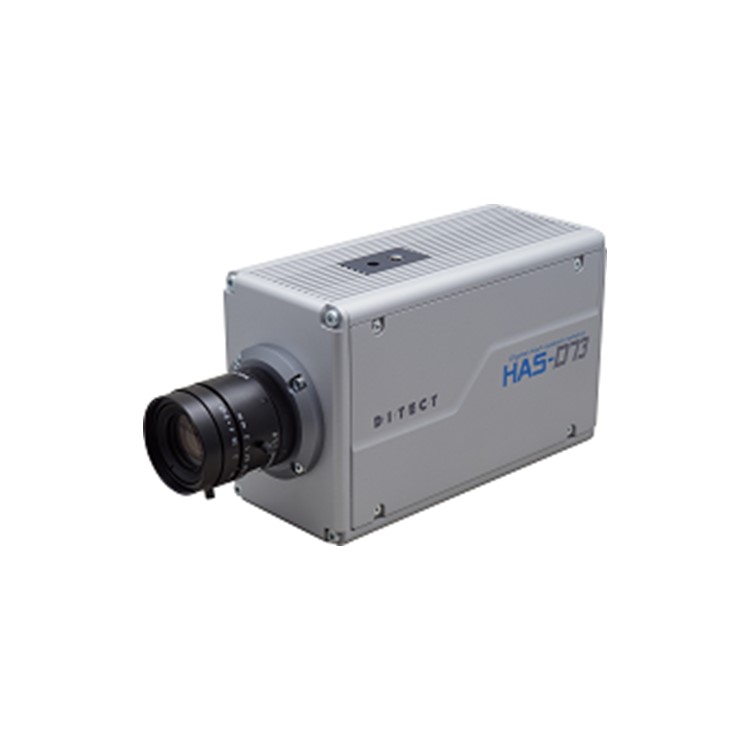

DITECT HAS-D73 HIGH DEFINITION DIGITAL HIGH SPEED CAMERA
- Capable of 2,000fps at 1.3M pixel
- Maximum shooting speed at 15,000fps
- Perfectly suits to stereo-PIV and stereo-3D experiments
- 1280x1028 pixel
- USB3.0
- Start / End / Variable / Motion trigger
클릭 하시면 이동합니다.
디텍트 ・ DITECT
HAS-D73
고속카메라
HAS-D73 HIGH DEFINITION DIGITAL HIGH SPEED CAMERA
2,000FPS at 1.3 megapixel (1280x1028) with a new image sensor will cover multiple applications.
Max 15,000FPS.
Color/Mono, 1inch image size, C mount, Minimum 1μsec shutter, Memory size 8GB or 16GB, USB3.0 fast interface.
User example case in
*Production engineering
Press machine/printing machine behavior, failure cause analysis
*Research and development
Crash test, structure collapse, vehicle movement
*Image analysis
Any PIV/Motion capture experiment of fast phenomena
*Microscope
Microorganism/sperm/metal stock behavior
*Sports science
Biomechanics, equipment research, golf swing
Details
- 2,000fps high speed imaging in 1,280 X 1,028
- High speed USB 3.0 interface will give you a smooth access
- Multi camera setting is available by external synchronization and external trigger
- Perfectly suits to stereo-PIV and stereo-3D experiments
- Easy operation and tablet GUI with your companion recording and viewer software
- PC less recording is possible with hot swap function

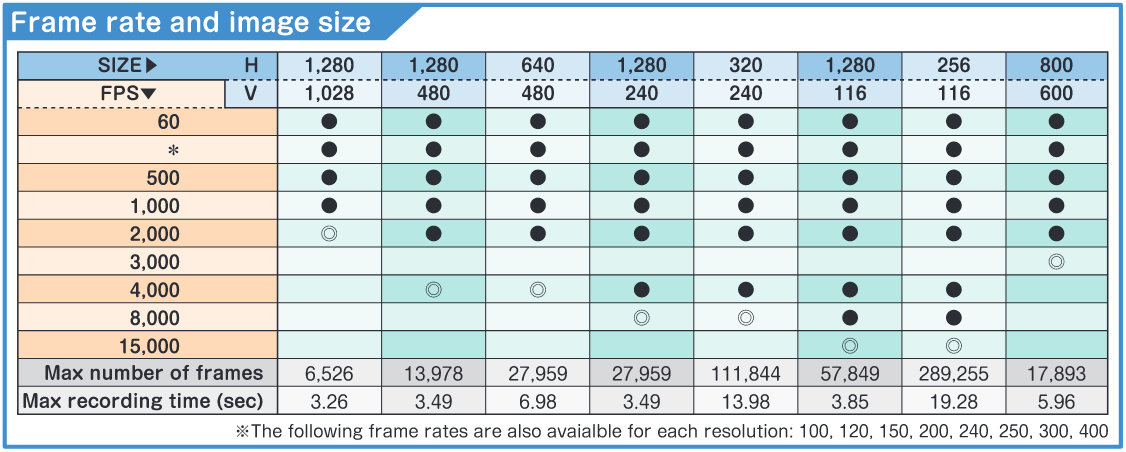

Frame rate and pixel size
- Max resolution = 1,280 X 1,028
- Max FPS in max resolution = 2,000 fps
- Max FPS = 15,000 fps in 1,280 x 116

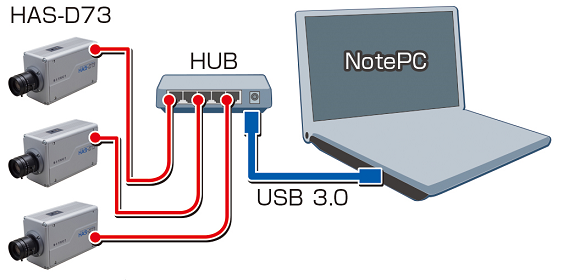

Connection diagram
USB3.0 interface will lead you to multi high speed recording system by using a USB3.0-HUB with your laptop/tablet windows PC.

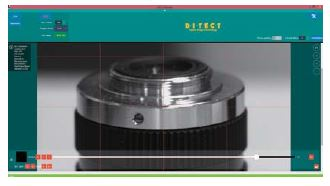

Camera control software
Easy control is possible with touch panel layout support.
A number of functions such as live view rotation / grid display / gain / gamma / bit shift / white balance are available by one action.
Hot swap recording
HAS-D73 allows a PC less recording situations by hot swap recording function.
You may remove the USB cable after standby and go on to a cable less trigger recording (TTL or switch trigger required).
Insert the USB cable back to your PC and preview/save the image concerned when you finish recording.
