DITECT HAS-D71 고속카메라
가격문의(상세정보 참조)
DITECT HAS-D71 고속카메라
DITECT HAS-D71 High sensitivity digital high speed camera
- Capable of VGA at 8,000fps
- Maximum shooting speed at 120,000fps
- Perfectly suits in low light condition
- 640x480 (VGA)
- USB3.0
- TTL／switch trigger function
클릭 하시면 이동합니다.
디텍트 ・ DITECT
HAS-D71
고속카메라

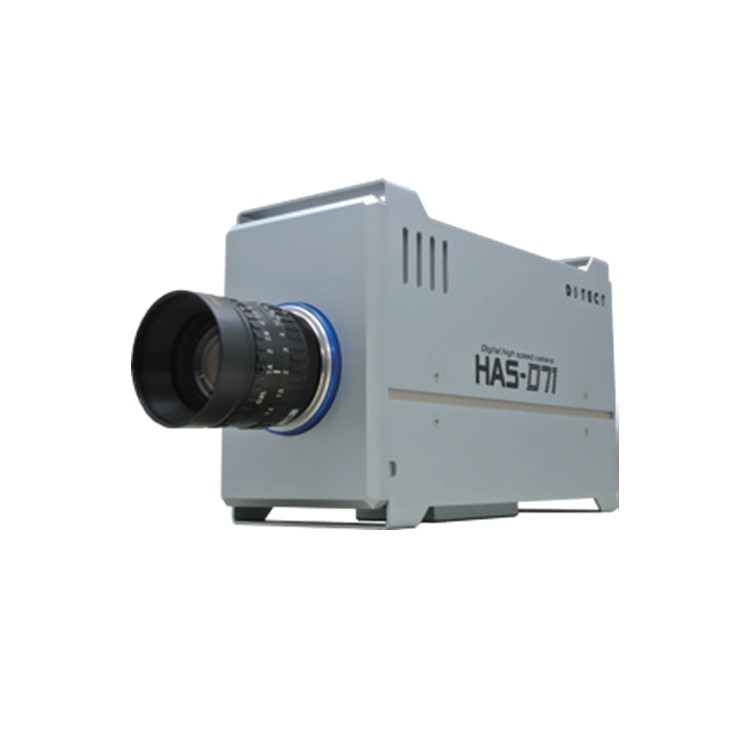

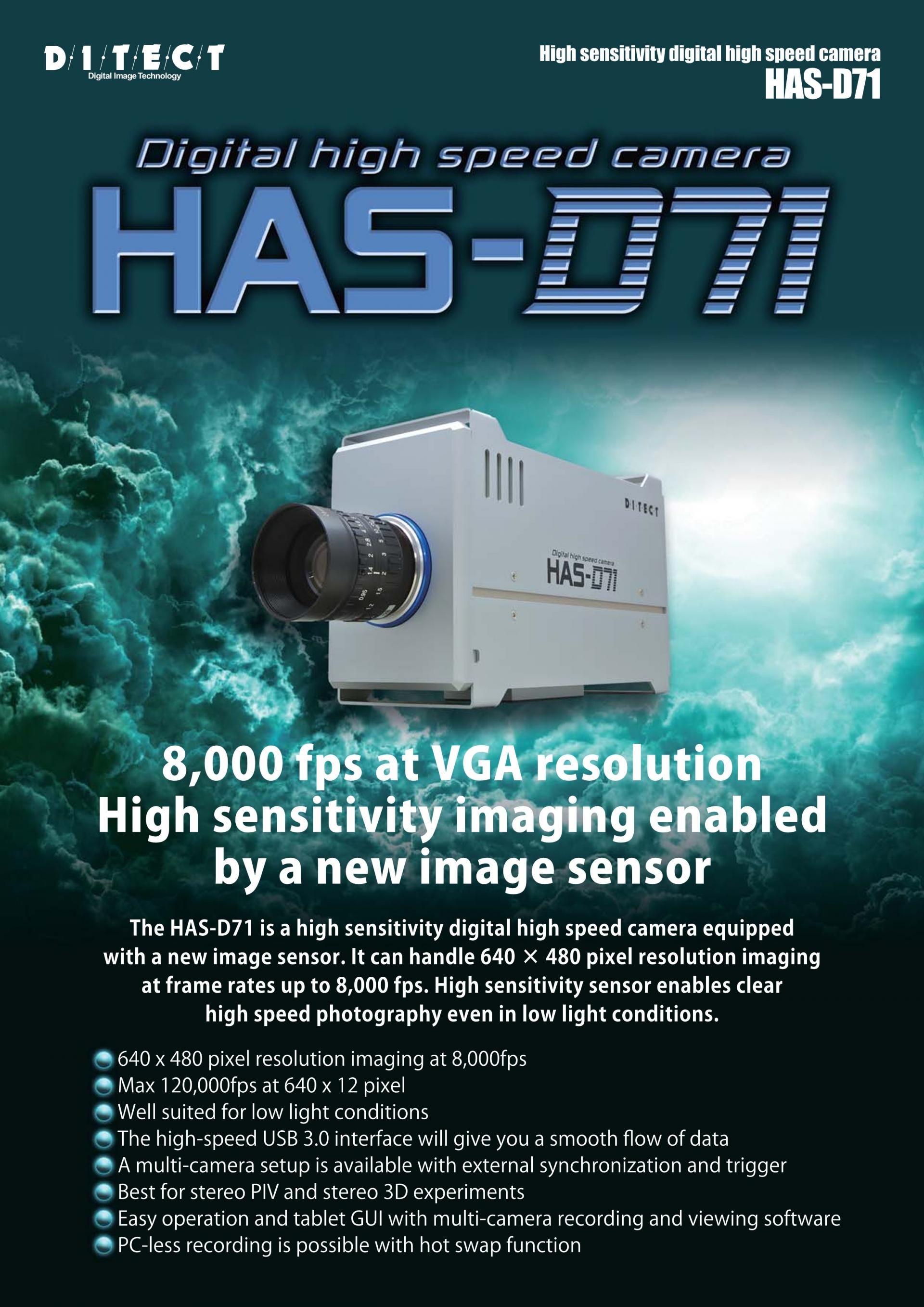

HAS-D71 High sensitivity digital high speed camera
8,000fps in VGA resolution with a new Japanese high sensitive image sensor will help you especially in low light condition.
Max 120,000fps. Color/Mono, 1/1.8inch image size, C mount, Minimum 1μ sec shutter, Memory size 8GB or 16GB, USB3.0 fast interface.
User example cases in
*Production engineering
Printer toner, ink-jet droplet, paint nozzle wire bonding, chip mounter, engine behavior, combustion chamber
*Research and development
Concrete chips, crash test, turbine rotation, cavitation flow
*Image analysis
Any PIV/Motion capture experiment of fast phenomena
*Microscope
Micro-channel, microbubbles, blood flow, protein behavior
Details
- 8,000fps high speed imaging in 640x480
- Perfectly suits in low light condition
- High speed USB3.0 interface will give you a smooth access
- Multi camera setting is available by external synchronization and external trigger
- Perfectly suits to stereo-PIV and stereo-3D experiments
- Easy operation and tablet GUI with your companion recording and viewer software
- PC less recording is possible with hot swap function

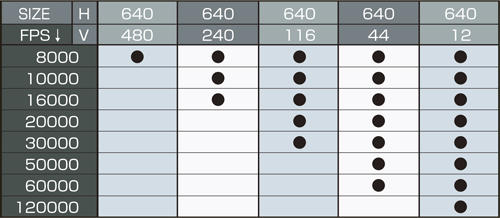

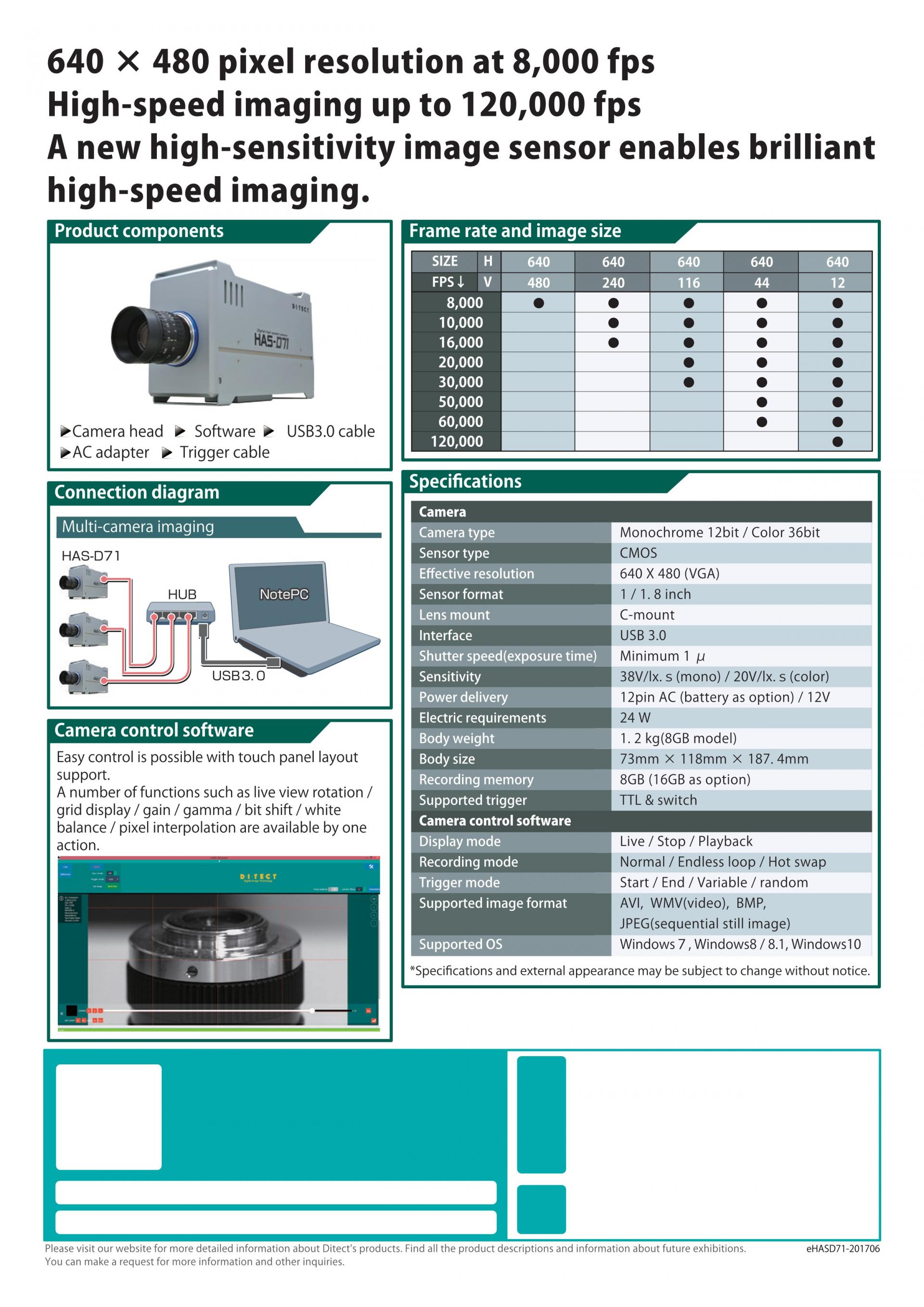

Frame rate and pixel size
- Max resolution = 640x480
- Max fps in max resolution = 8,000fps
- Max fps = 120,000fps in 640x12
Connection diagram
USB3.0 interface will lead you to multi high speed recording system by using a USB3.0-HUB with your laptop/tablet windows PC.

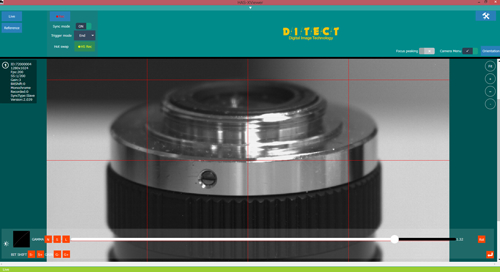

Camera control software
Easy control is possible with a touch panel support layout. A number of functions such as live view rotation / grid display / gain / gamma / bit shift / white balance / pixel interpolation are available by one action.
Hot swap recording
HAS-D71 allows a PC less recording by hot swap recording function.
You may remove the USB cable after standby and go on to a cable less trigger recording (TTL or switch trigger required).
Insert the USB cable back to your PC and preview/save the image concerned when you finish recording.
